Concrete Sampling

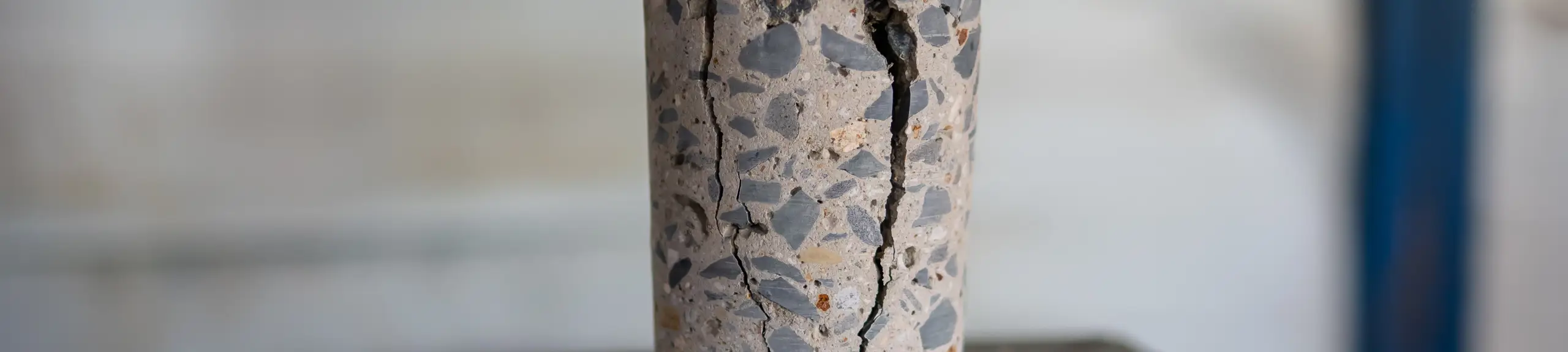

Concrete cubes are made on site to check that the strength of the concrete is above the minimum strength which has been specified.


Making, curing and testing cubes should be carried out in the correct manner. Even small deviations from the standard procedures will usually lead to compressive strength results which are lower than the true strength of the concrete. For example, for each 1% air entrapped there will be a 4 to 5% loss of strength. The procedures for concrete cube making are given in British Standard (BS) 1881:1983 Testing Concrete.


  • Sample tray
  • Mould for making test cube
  • Spanners
  • Scoop
  • Steel float or trowel
  • Compacting bar
  • Vibrating hammer or vibrating table
  • Cleaning rags
  • A bucket or barrow for transporting the samples
  • Polythene sheeting
  • Curing tank

Making test cubes from fresh concrete

Compaction: Filling the Cube Moulds and Compacting the Concrete

After the sample has been remixed, immediately fill the cube moulds and compact the concrete, either by hand or by vibration. Any air trapped in the concrete will reduce the strength of the cube. Hence, the cubes must be fully compacted. However, care must also be taken not to over compact the concrete as this may cause segregation of the aggregates and cement paste in the mix. This may also reduce the final compressive strength. Compacting with Compacting Bar

150 mm moulds should be filled in three approximately equal layers (50 mm deep). A compacting bar is provided for compacting the concrete. It is a 380 mm long steel bar, weighs 1.8 kg and has a 25 mm square end for ramming. During the compaction of each layer with the compacting bar, the strokes should be distributed in a uniform manner over the surface of the concrete and each layer should be compacted to its full depth. During the compaction of the first layer, the compacting bar should not forcibly strike the bottom of the mould. For subsequent layers, the compacting bar should pass into the layer immediately below. The minimum number of strokes per layer required to produce full compaction will depend upon the workability of the concrete, but at least 35 strokes will be necessary except in the case of very high workability concrete. After the top layer has been compacted, a trowel should be used to finish off the surface level with the top of the mould, and the outside of the mould should be wiped clean.
